RW-L10.6 (AS, AF, LATAM, EU)
- High Capacity & Scalability: 10.64 kWh energy capacity with support for up to 32 units in parallel
- Reliable Performance: IP65-rated, wide operating temperature range (-20°C to 55°C), and peak discharge current of 300A (10 seconds)
- Long Lifespan: ≥6,000 cycles at 90% DoD with long-lasting LFP battery technology
- Smart & Safe: Intelligent BMS, built-in circuit breaker, and advanced safety features
- Convenient Operation: Auto-networking, remote monitoring support, and easy-to-install wall or floor-mounted design
- Durable Design: Protected against harsh environments and optimized for indoor/outdoor applications
Description

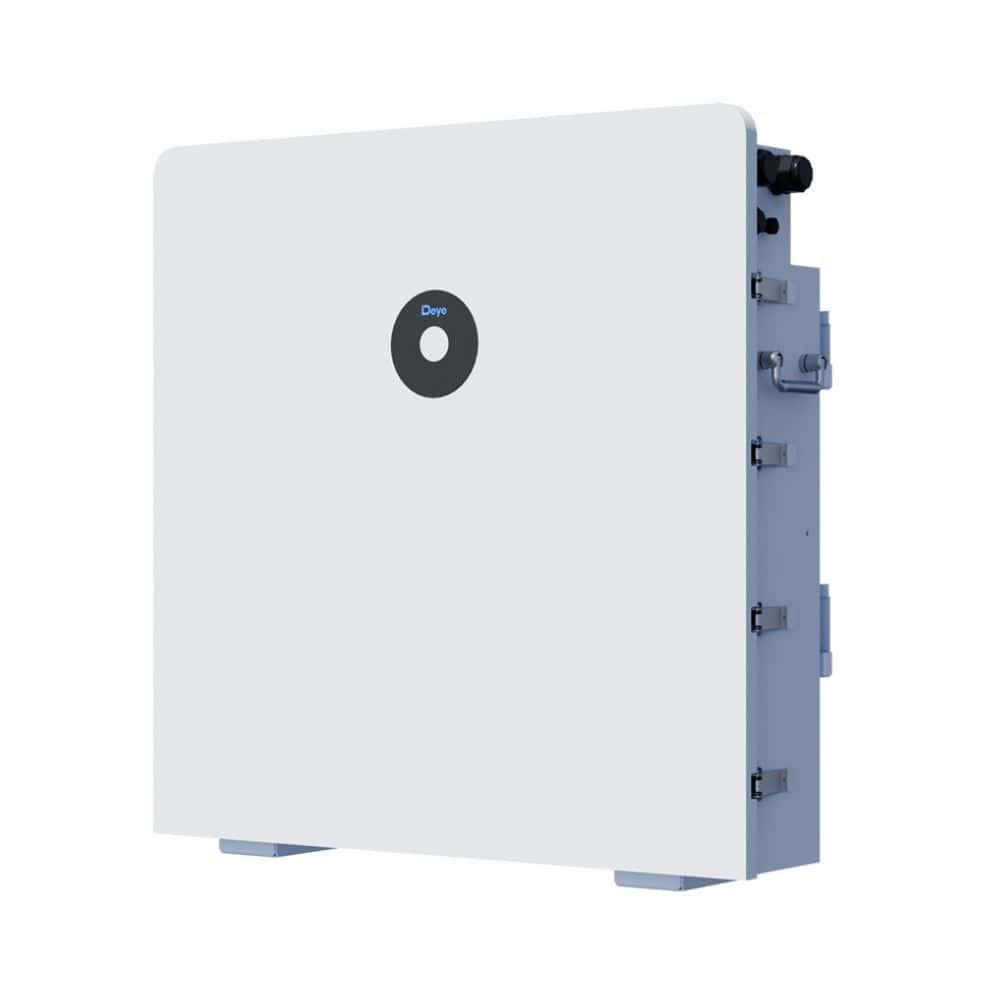

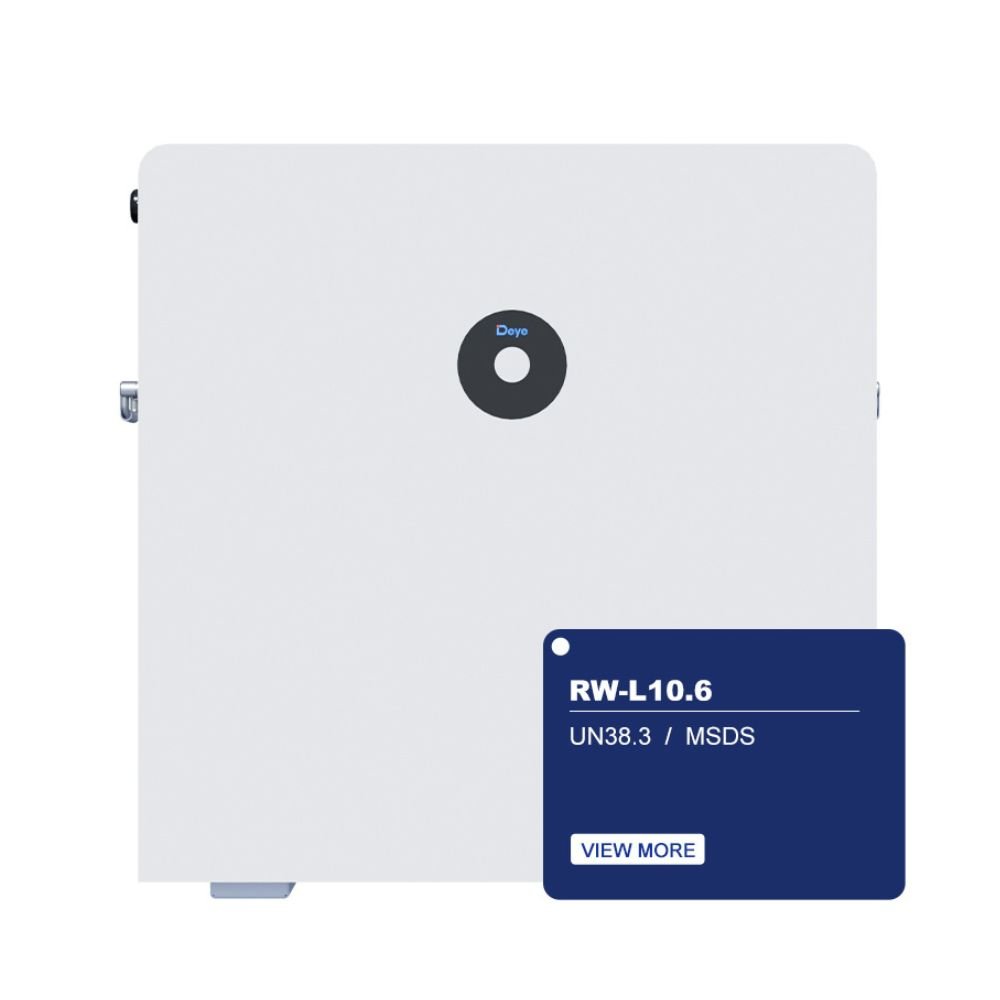

RW-L10.6 Residential ESS Solution (DEYE Spring RW Series)
The RW-L10.6 is a state-of-the-art residential energy storage system (ESS) crafted for reliable and efficient power backup and residential applications. Engineered with advanced LiFePO₄ battery technology, the RW-L10.6 offers outstanding performance, scalability, and long-term durability.
| Category | Specification |
|---|---|
| Battery Chemistry | LiFePO₄ |
| Nominal Voltage | 51.2 V |
| Capacity | 208 Ah |
| Nominal Energy | 10.64 kWh |
| Usable Energy (@90% DoD) | 9.6 kWh |
| Charge/Discharge Current | Max Continuous: 200A Peak: 300A (10 sec) |
| Cycle Life | ≥ 6,000 cycles (25°C, 0.5C, 90% DoD, 70% EOL) |
| IP Rating | IP65 (indoor & outdoor use) |
| Operating Temperature | Charge: 0°C ~ 55°C Discharge: -20°C ~ 55°C |
| Dimensions (W × H × D) | 745 × 745 × 170 mm |
| Weight | 98 kg |
| Scalability | Supports up to 32 units in parallel |
| Communication Ports | CAN2.0, RS485 |
| Installation Options | Wall-mounted, Floor-mounted |
| Relative Humidity | ≤ 95% (non-condensing) |
| Altitude | ≤ 2000 m |
| Energy Throughput | 16 MWh |
| Warranty | 5 years |
| Certifications | UN38.3, MSDS |
Key Features
Flexible Design
- Supports up to 32 units in parallel for extensive scalability.
- Compatible with any inverter for smooth charging and discharging via a 10A current limit.
- Perfect for backup power in residential settings.
Reliable Performance
- High discharge capacity with a peak current of 300A for 10 seconds.
- IP65-certified enclosure and natural cooling ensure optimal performance even in harsh environments.
- Wide temperature range support (-20°C to 55°C), making it suitable for diverse climatic conditions.
Convenience Redefined
- Auto-networking of battery modules eliminates the need for manual DIP switches.
- Supports Deye’s remote monitoring and firmware upgrade capabilities, keeping maintenance simple and efficient.
Safer & Smarter
- Built with intelligent Battery Management System (BMS) and an integrated circuit breaker for maximum safety.
- Powered by a long-lasting LFP battery with exceptional efficiency and cycle life.
Why Choose RW-L10.6?
With its high capacity of 10.64 kWh, robust build, and extensive scalability, the RW-L10.6 is a versatile and reliable choice for residential energy storage. Whether you need a backup power solution or an energy-efficient system for your home, this product ensures hassle-free operation, long-term sustainability, and superior protection.
Upgrade your energy solutions today with the RW-L10.6 Residential ESS!
