MS-L430-2H2 (EU)
- High Capacity: 430.08kWh nominal energy storage capacity
- Reliable Performance: 280Ah nominal capacity, 768Vdc nominal DC voltage
- Efficient Operation: 200kW rated power (AC), scalable up to 220kW
- Flexible Applications: Ideal for peak shaving, grid support, backup power, and EV charging integration
- Enhanced Safety: Equipped with liquid cooling, fire suppression, and multi-level electrical protection
- Smart Management: Cloud-based platform with remote monitoring, data analysis, and customizable settings
- Durable Design: -25°C to +55°C operating temperature range, IP54 protection rating
Description

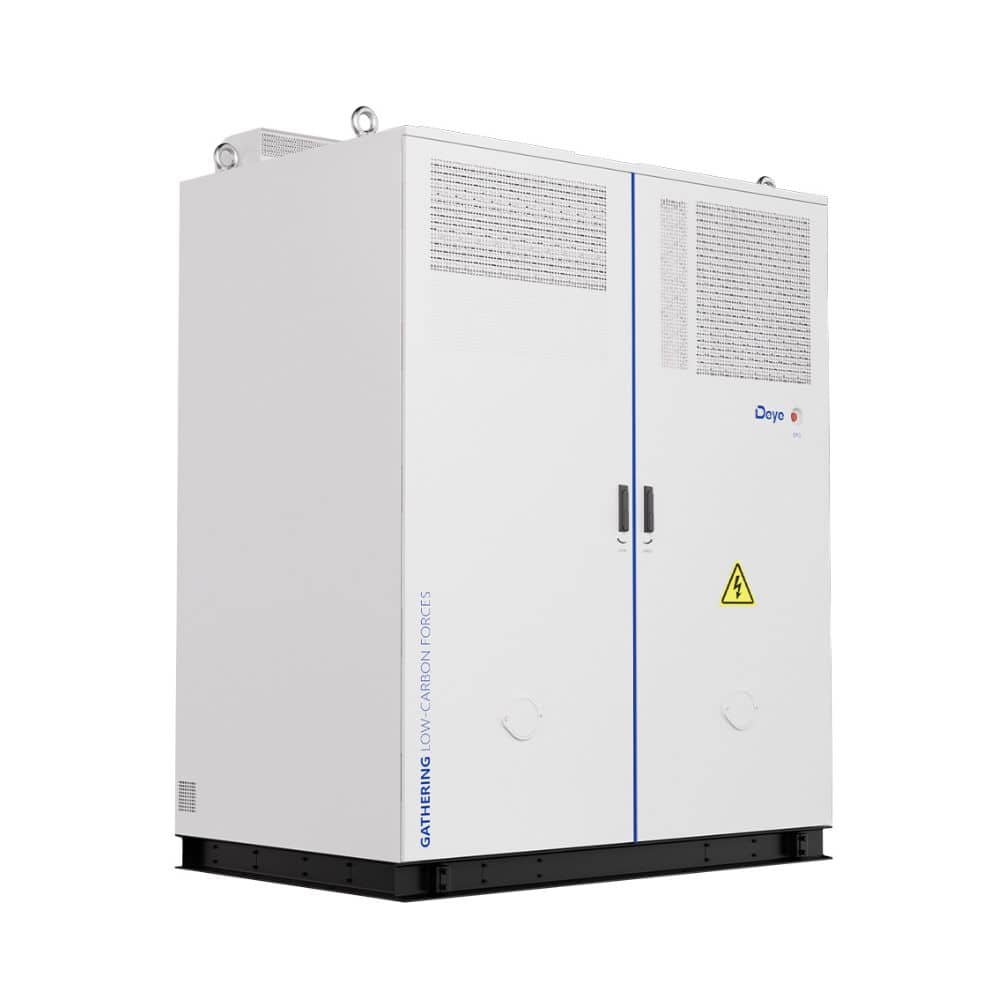

The MS-L430-2H2 from Deye is an advanced AC Battery Energy Storage System (BESS) designed to cater to the commercial and industrial sectors. This versatile and high-performing energy storage solution is equipped to handle diverse application scenarios, ensuring peak efficiency and reliability.
| Parameter | Specification |
|---|---|
| Nominal Capacity | 280Ah |
| Nominal Energy | 430.08 kWh |
| Nominal DC Voltage | 768Vd.c |
| DC Voltage Range | 636Vd.c ~ 876Vd.c |
| Charge/Discharge Rate | Charge 0.5P, Discharge 1P |
| Operating Temperature | -25℃ ~ +55℃ |
| Storage Temperature | -30℃ ~ +60℃ |
| Humidity | 0 ~ 95% (No condensation) |
| Type of Cooling | Liquid cooling |
| Fire Suppression | Aerosol, Water |
| Ingress Protection | IP54 |
| Anticorrosion Grade | ≥C4 |
| Altitude | ≤2000m |
| Communication | RS485, Modbus TCP, DIDO |
| Weight | ≤4600kg |
| Dimensions (W × D × H) | 2000 × 1300 × 2480 mm |
| Nominal AC Voltage | 380/400V 3L+N+PE |
| Rated Frequency | 50 / 60Hz |
| Rated Power | 200kW |
| Maximum Power | 220kW (1.1 times rated) |
| Power Factor | -0.8 ~ +0.8 |
Key Features:
- Superior Energy Storage Capacity: With a nominal energy capacity of 430.08 kWh and a nominal capacity of 280Ah, the MS-L430-2H2 leverages LiFePO4 battery technology to deliver robust and long-lasting energy storage.
- Wide Operational Range: It operates efficiently within a broad DC voltage range of 636Vd.c to 876Vd.c and maintains stability under varying temperatures from -25℃ to +55℃.
- High Power Output: The system supports a nominal AC voltage of 380/400V (3-phase) with a rated power output of 200kW, which can peak up to 220kW.
- Efficient Cooling and Fire Safety: The liquid cooling system combined with aerosol and water-based fire suppression ensures optimal temperature management and enhanced safety.
- Durability: Engineered to withstand harsh environments with an IP54 ingress protection rating and an anticorrosion grade of ≥C4, making it suitable for various industrial settings.
- Advanced Communication: Supports RS485 and Modbus TCP communication protocols, enabling seamless integration and monitoring within existing infrastructure.
Applications:
- New Energy Vehicle Charging: Ideal for expanding charging capacity for electric vehicles.
- Peak Shifting/Arbitrage: Helps in peak-to-valley energy shifting and arbitrage, optimizing energy use.
- Off-Grid Operations: Suitable for remote operations like islands or communication base stations.
- Virtual Power Plant Ready: Prepared for integration into virtual power plant frameworks, supporting grid stability and flexibility.
Safety and Reliability:
The MS-L430-2H2 prioritizes safety with a self-contained fire protection system, explosion-proof safety measures, and a comprehensive five-level electrical safety protocol, ensuring peace of mind alongside performance.
The Deye MS-L430-2H2 is a premium energy storage solution for commercial and industrial applications, offering high capacity, advanced safety features, and versatile applications, all packed within a robust and reliable system.
