Hybrid AC/DC Solar Air Conditioner
The Hybrid AC/DC Solar Air Conditioner is a sustainable and energy-efficient cooling solution that uses both solar and traditional electricity to provide cool air.
- 100% energy saving in day time. Only solar panel drive.
- AC grid power limiter, limit AC power from 0-600W
- AC power mode, DC power mode, AC+DC mix power supply (AC/DC Auto Balance)
- No inverter, no battery, no charge controller
- Full DC driven
- Wide operating temporature (-10℃ to 58 ℃)
- Long warranty years
Description
The Hybrid ACDC Solar Air Water Cooler is an innovative new air conditioning system that can run on solar power during the daytime and grid power at night. This allows for significant energy savings compared to traditional AC units.
The system is completely powered by solar panels during daylight hours, saving 100% of grid electricity costs. It seamlessly transitions to grid power as needed at night.
The AC power draw is limited to a maximum of 600W. This allows the solar panels to provide the majority of power needed for cooling during peak sunlight hours. Operate on grid AC power, solar DC power, or a balanced combination of both, depending on conditions and your preference.

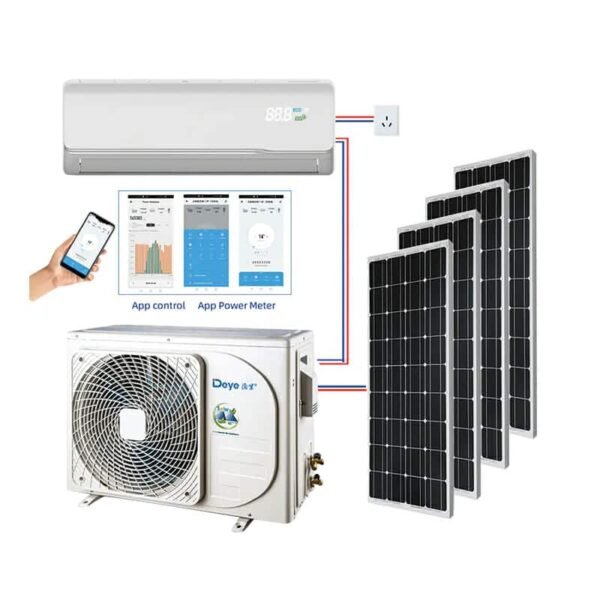

Plug the solar panels directly into the unit to provide DC power; no other solar equipment is required. The compressor and fans run entirely on DC power when in solar mode for maximum efficiency.
With a range from -10°C to 58°C, this unit can provide effective cooling in most climates.
With game-changing solar integration and energy efficiency, the Hybrid ACDC Solar Air Water Cooler is ideal for eco-friendly cooling with maximum cost savings. Reach out for more details on this innovative new product. Industry-leading warranty provides peace of mind on your investment in this advanced cooling technology.
Product Parameters:
| T3/T1 Hybrid AC/DC Solar Air Conditioner | |||||
| Model | Unit | DGA2-ACDCBLW-12K | DGA1-ACDCBLW-18K | DGA1-ACDCBLW-24K | |
| Climate Type | Tropical</= 58℃ | T3/T1 | T3/T1 | T3/T1 | |
| Application area | m2 | 12-20 | 20-30 | 30-42 | |
| Power Supply | AC Power | Ph-V-Hz | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ | 1Ph 208V-240V/50-60HZ |
| DC Power (PV in Series) | V | 80-380V | 80-380V | 80-380V | |
| DC Power Current | A | </=10A | </=10A | </=10A | |
| Adviced Solar Panel | Pcs | (3-4)*330W in series | (3-6)*330W in series | (3-8)*330W in series | |
| Rated Cooling | Capacity(T1) | W | 3510(900-3900) | 5070(1200-6000) | 6450(1800-7900) |
| BTU | 12000(3000-13300) | 17300(4100-20400) | 22000(6100-27000) | ||
| Power input(T1) | W | 940(190-1270) | 1400(220-2100) | 1790(300-3200) | |
| Capacity(T3) | W | 2910 | 4290 | 5130 | |
| BTU | 9900 | 14700 | 17500 | ||
| Power input(T3) | W | 1050 | 1630 | 1940 | |
| Rated Heating | Capacity | W | 4100(1000-4500) | 6100(1200-6800) | 7800(1800-9100) |
| BTU | 14000(3000-15300) | 20800(4100-23000) | 26600(6100-31000) | ||
| Power input | W | 1170(190-1700) | 1770(220-2500) | 2290(300-3500) | |
| T1 EER (W/W)/ (BTU/W) | / | 3.75/12.75 | 3.60/12.35 | 3.60/12.30 | |
| T3 EER (W/W)/ (BTU/W) | / | 2.75/9.45 | 2.65/9.00 | 2.65/9.00 | |
| COP (W/W)/ (BTU/W) | / | 3.50/11.95 | 3.45/11.75 | 3.40/11.60 | |
| Dehumidification capacity | L/h | 1.3 | 1.7 | 2.5 | |
| Compressor | Model | / | WHP04200 | WHP05600 | 5RD198 |
| Type | / | 2xRotary Inverter | 2xRotary Inverter | 2xRotary Inverter | |
| Brand | / | Highly | Highly | Panasonic | |
| Indoor fan motor | Model | BLDC-15W | BLDC-45W | BLDC-45W | |
| Speed(Turbo/Hi/Mi/Lo) | r/min | 1300/1200/1100/950 | 1050/950/850/750 | 1350/1250/1150/1000 | |
| Indoor air flow(Turbo/Hi/Mi/Lo) | m3/h | 540/485/435/350 | 980/880/740/620 | 1290/1180/1070/900 | |
| Indoor noise level (Turbo) | dB(A) | ≤42.5 | ≤46 | ≤50 | |
| Indoor unit | Dimension(W×H×D) | mm | 840×205×295 | 1080×330×237 | 1080×330×237 |
| Packing (W×H×D) | mm | 920×290×360 | 1140×300×382 | 1140×300×382 | |
| Net weight/Gross weight | Kg | 9.0/12.5 | 15.0/18.5 | 15.0/18.5 | |
| Outdoor fan motor | Model | / | BLDC-40W | BLDC-55W | BLDC-75W |
| Speed | r/min | 880 | 880 | 850 | |
| Outdoor air flow | m3/h | 2100 | 2200 | 3300 | |
| Outdoor noise level | dB(A) | ≤52 | ≤55 | ≤58 | |
| Outdoor unit | Dimension(W×H×D) | mm | 802×564×323 | 802×564×323 | 900×700×337 |
| Packing (W×H×D) | mm | 910×622×405 | 910×622×405 | 1006×755×418 | |
| Net/Gross weight | Kg | 33.5/37.5 | 37/42.0 | 50/54.5 | |
| Refrigerant type | / | R410A | R410A | R410A | |
| Max Design pressure | MPa | 4.3/1.5 | 4.3/1.5 | 4.3/1.5 | |
| Refrigerant copper pipe | Gas side/Liquid side (inch) | inch | 3/8 1/4 | 1/2 1/4 | 1/2 1/4 |
| Max. refrigerant pipe length | m | 15 | 20 | 25 | |
| Max. difference in level | m | 8 | 10 | 10 | |
| Drain pipe size | mm | 16 | 16 | 16 | |
| Refrigerant connction copper pipe length | m | 3 | 4 | 4 | |
| Connection wire length | m | 4 | 5 | 5 | |
| Electronic Expansion Valve | / | Yes | Yes | Yes | |
| Loading QTY 40″ Hq/ 20″GP | Sets | 200/85 | 160/75 | 115/50 | |
