GE-F120-3H6
- High Power Output: Provides 40,000W nominal output power.
- Scalable Energy Storage: Offers 61.44 kWh usable energy.
- Long Lifespan: Boasts a cycle life exceeding 6000 cycles.
- Robust Safety: Includes advanced fire suppression and multiple safety monitoring systems.
- Easy Monitoring: Integrates with the Deye smart cloud platform for real-time monitoring and control.
- Reliable Performance: Uses Lithium Iron Phosphate (LiFePO4) batteries for long-term reliability.
- Versatile Applications: Suitable for various commercial and industrial applications.
- Ten-Year Warranty: Comprehensive warranty coverage.
Description

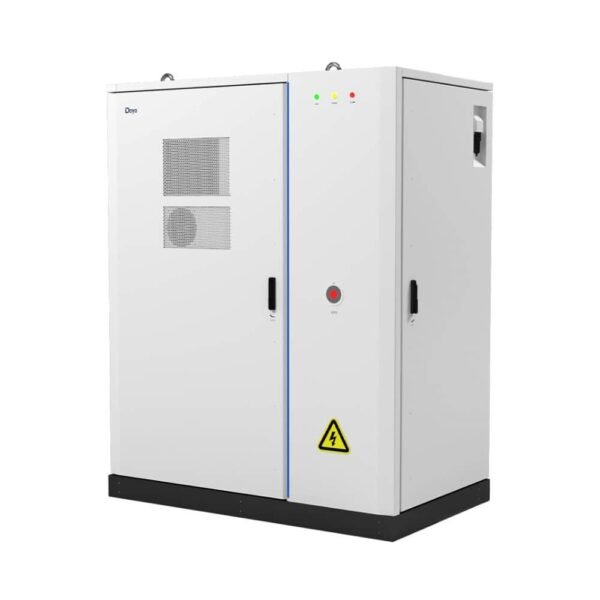

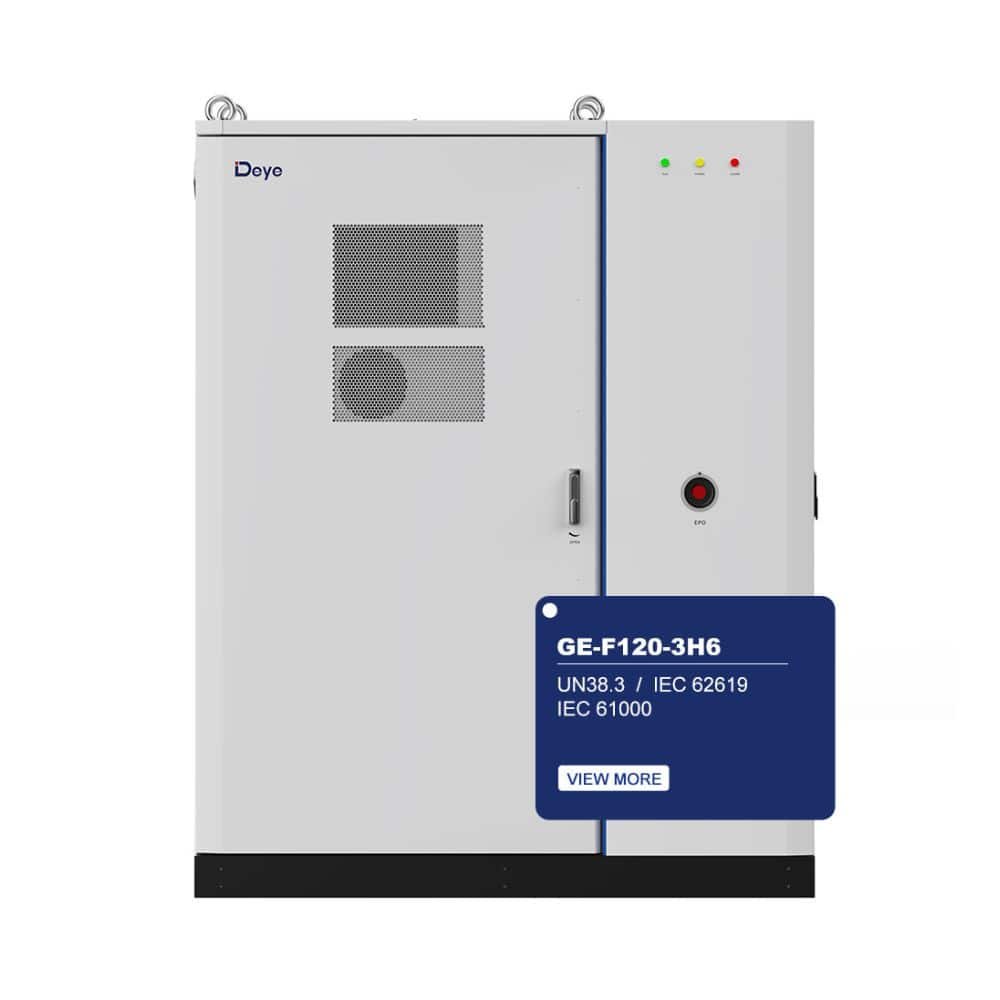

The Deye GE-F120-3H6 is a cutting-edge small-scale commercial and industrial energy storage solution designed for high efficiency and flexibility. This model is part of Deye’s advanced energy storage series, offering robust performance with integrated safety features, making it ideal for various applications, including renewable energy integration and backup power solutions.
| Specification | Parameter |
|---|---|
| Model | GE-F120-3H6 |
| Nominal Output Power (W) | 40,000 |
| AC Output Frequency | 50Hz / 45~55HZ |
| AC Output Voltage | 230V / 400V |
| Number of Parallel Connections | Up to 10 units (Off-grid) |
| System Usable Energy (kWh) | 61.44 |
| Dimensions (W × D × H, mm) | 1780 × 1056 × 2235 |
| Weight (kg) | Approximately 2090 |
| Battery Operating Voltage (V) | 500 – 700 |
| Max. Energy Conversion Efficiency | 89% |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| IP Rating | IP55 |
| Installation Method | Floor-Mounted |
| Storage Temperature (°C) | 0 ~ 35 |
| Operating Temperature (°C) | -20 ~ 55 (derating above 43°C) |
| Warranty | 10 years |
| Cycle Life | ≥6000 cycles (@ 25°C ± 2°C, 0.5C / 0.5C) |
| Certifications | UN38.3, IEC 62619, IEC 61000 |
Key Features
- High Usable Energy: Supports a maximum usable energy of 61.44 kWh, making it suitable for energy-intensive operations.
- Long Cycle Life: With a lifespan of over 6,000 cycles, the GE-F120-3H6 ensures a reliable energy solution for commercial environments.
- Comprehensive Safety: Equipped with advanced safety protection measures, including fire suppression systems and active monitoring of gas, smoke, and temperature.
- User-Friendly Interface: Supports seamless management through the Deye smart cloud platform, offering real-time monitoring and control options.
Deye GE-F120-3H6 represents a state-of-the-art solution for energy management in commercial and industrial settings. With its high capacity, extensive safety features, and long-lasting performance, it is an ideal choice for businesses looking to optimize their energy usage and reliability. The integration with a smart monitoring platform further enhances its operational efficiency, ensuring users can manage their energy needs effectively.
