DC 48V Solar Air Conditioner

The DC48V Solar Air Conditioner runs on solar power, reducing costs and carbon footprint. Sleek design and powerful performance make it ideal for eco-friendly users.

  • 100% off grid
  • DC 48V battery powered
  • Battery low voltage protection
  • DC driven high efficiency
  • Wide operating temperature  (-10℃ to 58℃)
SKU: DC48V Category:

Description

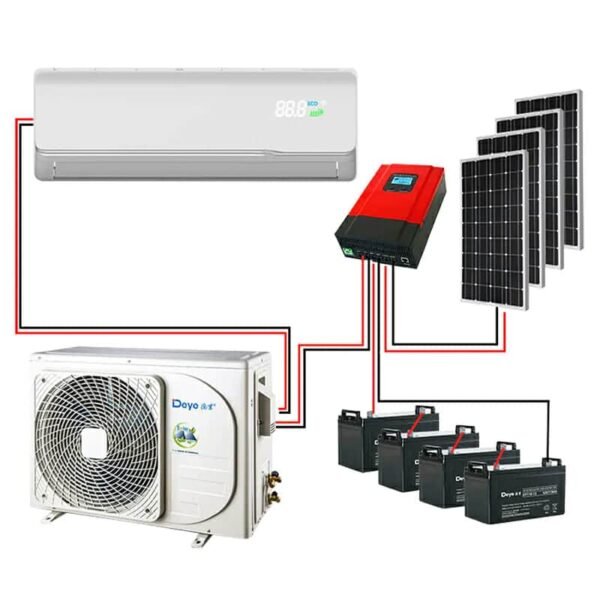

The DC 48V Solar Air Conditioner from Deye is an innovative 100% solar-powered air conditioning system designed for off-grid operation. It uses a high-efficiency brushless DC compressor optimized for 48V DC input from batteries charged by solar photovoltaic panels.

By eliminating the need for grid power or AC inverters, this air conditioner provides reliable cooling using just solar energy stored in batteries. Advanced maximum power point tracking extracts maximum power from the PV panels to charge batteries efficiently. The system is also designed to withstand wide ambient temperatures from -10°C to 58°C.

Key features include 48V DC compressors that directly run on solar batteries without AC conversion losses. Integrated battery protection prevents over-discharge and system shutdown at low voltage. The smart monitoring platform allows remote control and parameter adjustment for easier operations & maintenance.

Available in a range of cooling capacities from 2.6kW to 6.4kW, the DC48V Solar Air Conditioner can handle areas from 8 to 40 square meters. The rugged brushless DC units have a long service lifetime and require minimal maintenance.

With its specialized off-grid solar design, Deye’s DC 48V Solar Air Conditioner brings reliable air conditioning powered by the sun to remote locations. Contact us for solar sizing and system design recommendations.

Product Parameters:

T1/T3 DC 48V Solar  Air Conditioner
ModelDGA1-DC48V-09KDGA1-DC48V-12KDGA1-DC48V-18KDGA1-DC48V-24K
Climate TypeTropical</= 58℃T1/T3T1/T3T1/T3T1/T3
Application aream28-1212-2020-3030-40
Power supplyBatteryDCDC48V(46~58V)DC48V(46~58V)DC48V(46~58V)DC48V(46~58V)
Rated CoolingCapacity(T1)W2600(1000-3400)3510(1000-3700)5070(1200-5250)6450(2500-7000)
BTU9000(3400-11600)12000(3400-12600)17300(4100-18000)22000(8500-23900)
Power input(T1)W680(180-1060)980(200-1200)1450(220-1780)1840(450-2230)
Capacity(T3)W2490291042005370
BTU850099001430018300
Power input(T3)W960109016602200
Rated HeatingCapacityW2900(800-3050)3900(1000-4100)5250(1200-5500)7000(2000-7350)
BTU9900(2700-10400)13300(3400-14000)18000(4100-18700)24000(10200-25000)
Power inputW830(160-950)1130(180-1280)1400(220-1830)2050(390-2350)
T1  EER (W/W)/ (BTU/W)/3.90/13.203.60/12.253.50/11.83.50/11.85
T3 EER (W/W)/ (BTU/W)/2.60/8.902.65/9.052.55/8.602.45/8.30
COP (W/W)/ (BTU/W)/3.50/11.903.45/11.753.75/12.803.40/11.70
Dehumidification capacityL/h11.31.72.5
CompressorModel/ASK89D53UEZASN98D22UFZWHP056005RD198
Type/Rotary InverterRotary Inverter2xRotary Inverter2xRotary Inverter
Brand/GMCCGMCCHIGHLYPanasonic
Indoor fan motorModel/BLDC 15WBLDC 15WBLDC 45WBLDC 45W
Speed(Turbo/Hi/Mi/Lo)r/min1200/1100/1000/8501300/1200/1100/9501050/950/850/7501350/1250/1150/1000
Indoor air flow(Turbo/Hi/Mi/Lo)m3/h485/435/380/305540/485/435/350980/880/740/6201290/1180/1070/900
Indoor noise level (Turbo)dB(A)≤40≤42.5≤46≤50
Indoor unitDimension(W×H×D)mm840×205×295840×205×2951080×330×2371080×330×237
Packing   (W×H×D)mm920×290×360920×290×3601140×300×3821140×300×382
Net weight/Gross weightKg9.0/12.59.0/12.515.0/18.515.0/18.5
Outdoor fan motorModel/BLDC  40WBLDC  40WBLDC  55WBLDC  75W
Speedr/min880880880850
Outdoor coila.Number of rows/1222
e.Tube outside dia.and typemmΦ7,innergroove tubeΦ7,innergroove tubeΦ9.52,innergroove tubeΦ9.52,innergroove tube
Outdoor air flowm3/h2000210022003300
Outdoor noise leveldB(A)≤51≤52≤55≤58
Outdoor unitDimension(W×H×D)mm802×564×323802×564×323802×564×323900×700×337
Packing  (W×H×D)mm910×622×405910×622×405910×622×4051006×755×418
Net/Gross weightKg28.0/32.032.0/36.036.0/40.051/56
Refrigerant type/R410aR410aR410aR410a
Max Design pressureMPa4.3/1.54.3/1.54.3/1.54.3/1.1
(Discharge/Suction)
Refrigerant pipingGas side/Liquid side (inch)inch 3/8  1/4 3/8  1/4 1/2   1/4 1/2  1/4
Max. refrigerant pipe lengthm15152025
Max. difference in levelm881010
Drain pipe sizemm16161616
Refrigerant pipinglengthm3344
Connection wiringm4455
Electrical Expansion ValveYesYesYesYes
Loading QTY 40″ Hq/ 20″GPSets200/85200/85160/75115/50
